Selecting Adjustable ShelfTrack Hardware for use in Pantry & Store room

Use the chart below to calculate the hardware you’ll need for each shelf created.

Select shelf lengths from the numbers across the top (dimensions in between should always be rounded up).

The column gives you the amount of hardware you’ll need for EACH shelf.

Click here to find all of the relevant components.


Product Name

2’

3’

4’

5’

6’

7’

8’

9’

10’

End Caps – 203

Use quantities shown for each shelf

Use 8 x 203 for 12” CloseMesh (7402)

Use 10 x 203 for 16” CloseMesh (7318)

Use10 x 203 for 20" CloseMesh (7403)

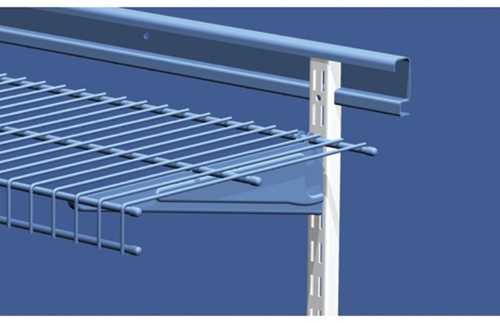

Hang Track - 2824, 2826, 2836

Install first to ensure all Wall Standards are level.
Available in 24", 40" & 80" lengths






1 x
2824





1 x
2826

1 x 2826
or
2 x 2824

2 x 2824

1 x 2826

1 x
2836

1 x 2836
or
2 x 2826



2 x 2824 &
1 x 2836



2 x 2826 &
1 x 2836



2 x 2826 &
1 x 2836



Wall Standard - 2800, 2801, 2804, 2808, 2812

Available in 12", 30", 48", 60" & 84" lengths.
Use at each end of installation and no more than 24" apart.

2



2



3

3

4

5

5

6



6



Shelf Support Bracket – 2853, 2854, 2855

Use to attach shelf to Wall Standard. Available in 12", 16" & 20" depths

2

2

3

3



4



5

5

6



6



Fixing Kit Solid walls - 2876

10 x Wall anchors & Screws.
Use to fix Hang Tracks & Wall Standards to the wall. For use with Solid & Stud Walls.

1

1

2

2



2



3

3

3



4



Fixing Kit Stud Walls - 2877

5 x Toggle bolts & screws.
Use to fix Hang Tracks & Wall standards to the wall. For use with stud walls where you are fixing to a void behind plasterboard.

2 2 4 4 4 6 6 6 8
