Selecting Fixed Mount Hardware for use in Wardrobes with Shelf & Rod shelving

Use the chart below to calculate the hardware you’ll need for each shelf created.

Select shelf lengths from the numbers across the top row (dimensions in between should always be rounded up).

The column gives you the amount of hardware you’ll need for EACH shelf.

Click here to find all of the relevant components.


Product Name

Configuration

2’

3’

4’

5’

6’

7’

8’

9’

10’

Open End Caps - 168

Use at 'open ends' to stop garments slipping off the ends of the hang rod.

Wall - Wall

Wall - Open

Open - Open

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

End Caps – 203

Use quantities shown for each shelf

Use 4 x 203 for 12" Shelf & Rod (7300)

Use 6 x 203 for 16" Shelf & Rod (7304 & 7305)

Large End caps - 204

Use to cover ends of hang rod where they meet a side wall.

i.e. when not using 168 open end caps

Wall - Wall

Wall - Open

Open - Open

4

2

0

4

2

0

4

2

0

4

2

0

4

2

0

4

2

0

4

2

0

4

2

0

4

2

0

Wall Bracket –  974

Use to attach shelf to side wall.




Wall – Wall

Wall – Open

Open – Open

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0



2

1

0



2

1

0



2

1

0



Wall Clip – 991

Use one 2" from the ends of each shelf & then spaced no more than 12” apart along the length of shelf

Wall – Wall

Wall – Open

Open – Open

3

3

3



4

4

4



5

5

5

6

6

6

7

7

7

8

8

8

9

9

9

10

10

10



11

11

11



Shelf Support Bracket – 1164

Use every 3’ along length of shelf & at each ‘open end’ of 12” deep shelving **

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



Shelf Support Bracket – 1166

Use to support front lip of shelf at 'Open ends' ONLY. Do not use as mid supports. **

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



Shelf Support Pole – 1009

Use to install a stack of 3 or more shelves.
Use every 3’ along the length of the shelves & at each ‘open end’

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



Corner Support – 120

For use when creating an ‘L’ or ‘U’ shape configuration

Use one to support two shelves butted together at a corner.


Don’t forget to order one 1164 or 1166 to support the shelf at the hang rod position as well.

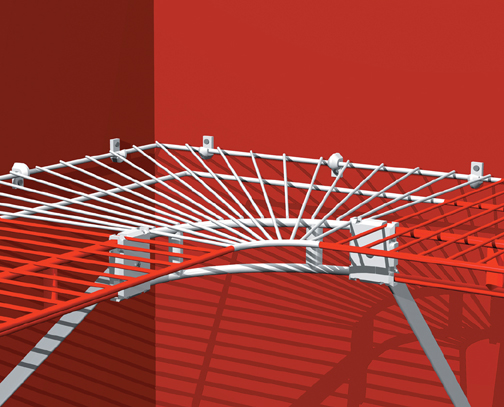

Corner Shelf Kit - 71066 or 71067

For use when bringing hanging section around corners.

Join corner kits with Shelf & Rod shelving to create 'L shape' & 'U shape' hanging sections.

Note that the 71066 will ONLY work with 7300 shelving and the 71067 will ONLY work with 7305 shelving as the hang rod sits at the 12" position.
There isn't a corner kit for use with 7304 shelving.



** If using 7304 shelving you will need to use 1162 Shelf Support Brackets to support the shelf at the 10" hang rod position.
      If using 7305 shelving you will need to use 1164 Shelf Support Brackets to support the shelf at the 12" hang rod position.

1166 Shelf Support Brackets should only be used to support the front lip of the shelf at any 'open/floating ends'.
