Selecting Fixed Mount Hardware for use in Wardrobes & Linen Closets

Use the chart below to calculate the hardware you’ll need for each shelf created.

Select shelf lengths from the numbers across the top row (dimensions in between should always be rounded up).

The column gives you the amount of hardware you’ll need for EACH shelf.

Click here to find all of the relevant components.


Product Name

Configuration

2’

3’

4’

5’

6’

7’

8’

9’

10’

End Caps – 203

Use quantities shown for each shelf

Use 10 x 203 for 12” SuperSlide (4719)

Use 12 x 203 for 16” SuperSlide (5670)

Use 8 x 203 for 12” Linen (7315)

Use 10 x 203 for 16” Linen (7320)

Wall Bracket – 942 or 974

Use to attach shelf to side wall when a Hang Bar is not needed.

Use 942 for Linen shelving & 974 for SuperSlide shelving



Wall – Wall

Wall – Open

Open – Open

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0



2

1

0



2

1

0



2

1

0



Wall Clip – 991

Use one 2" from the ends of each shelf & then spaced no more than 12” apart along the length of shelf

Wall – Wall

Wall – Open

Open – Open

3

3

3



4

4

4



5

5

5

6

6

6

7

7

7

8

8

8

9

9

9

10

10

10



11

11

11



Shelf Support Bracket – 1164

Use every 3’ along length of shelf & at each ‘open end’ of 12” deep shelving **

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



Shelf Support Bracket – 1166

Use every 3’ along length of shelf & at each ‘open end’ of 16” deep shelving **

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



Shelf Support Pole – 1009

Use to install a stack of 3 or more shelves.
Use every 3’ along the length of the shelves & at each ‘open end’

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3



1

2

3



2

3

4

2

3

4

3

4

5



3

4

5



SuperSlide Wall Bracket – 980

Use to attach 12” deep SuperSlide shelf and Hang Bar to side walls

Wall – Wall

Wall – Open

Open – Open

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

SuperSlide Hang Bar –

2056, 2057, 2058, 2059, 2012

Allows hangers to slide uninterrupted. Available in 3’, 4’, 6’, 8’ & 10’ lengths



1

(3’)

1

(3’)

1

(4’)

1

(6’)

1

(6’)

1

(8’)

1

(8’)

1

(10’)

1

(10’)

Hang Bar Cap – 2081

Use at ‘open ends’ of hang bar to stop items slipping off the ends

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

0

1

2

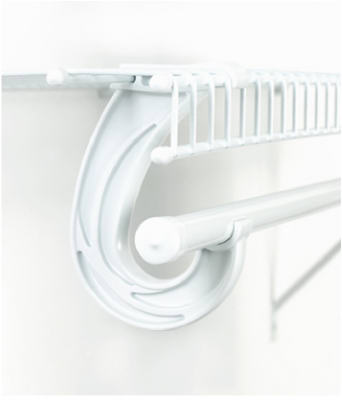

Hang Bar Cap – 2083

Use with 980’s or 6810’s to cover ends of hang bar

Wall – Wall

Wall – Open

Open – Open

2

1

0

2

1

0

2

1

0



2

1

0



2

1

0

2

1

0

2

1

0

2

1

0

2

1

0

Hang Bar Support – 5647

Use every 3’ along length of hang bar and at each ‘open end’.

Wall – Wall

Wall – Open

Open – Open

0

1

2

0

1

2

1

2

3

1

2

3

1

2

3

2

3

4

2

3

4

3

4

5



3

4

5

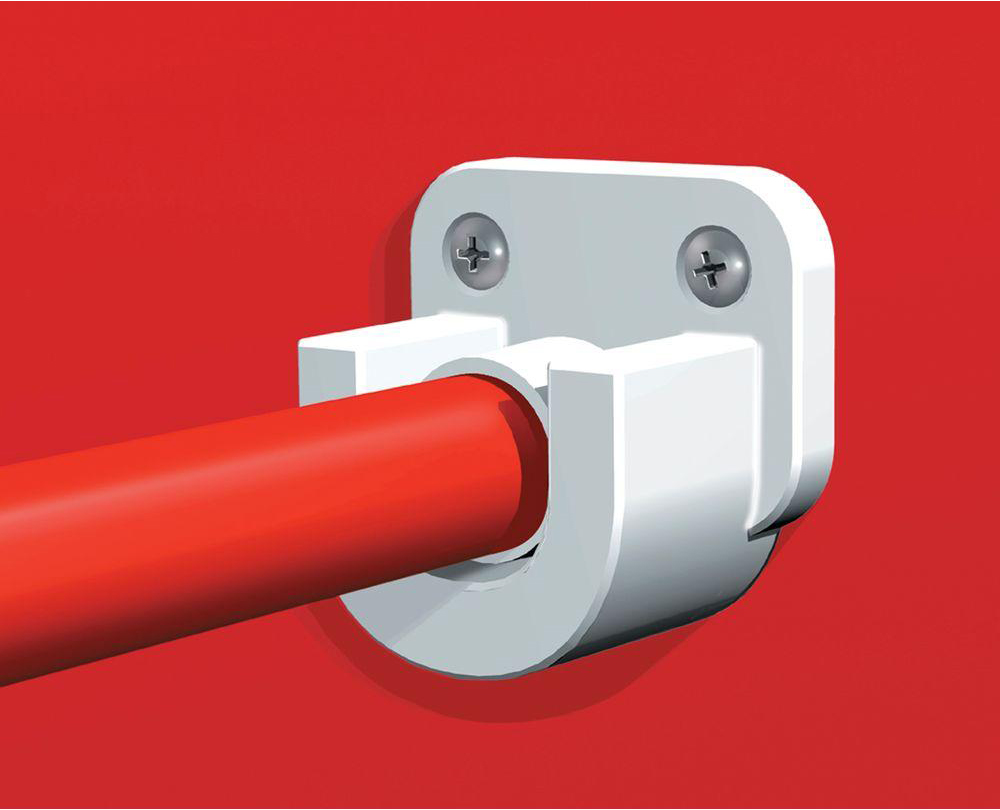

SuperSlide Hang Bar Bracket – 6810

For use with 16” deep shelving when adding a hang bar

Wall – Wall

Wall – Open

Open – Open

2

1

0

2

1

0



2

1

0



2

1

0



2

1

0



2

1

0



2

1

0



2

1

0

2

1

0

Corner Support – 120

For use when creating an ‘L’ or ‘U’ shape configuration

Use one to support two shelves butted together at a corner.


Don’t forget to order one 1164 or 1166 for each corner too.

Shoe Shelf Support – 923

Use one at each end of the shelf and every 3’ along the length

Open – Open

2

2

3

3

3

4

4

4

5

Corner Hang Bar – 5649

For use when bringing hanging sections around corners

Use with SuperSlide Hang Bars to create an uninterrupted sliding action around corners for ‘L-Shape’ & Walk In Closets.


Use Hang Bar Supports (5647) at each end of the Corner Hang Bar to support the join.



** If using 16” deep shelving with SuperSlide Hang Bars you will need to use 1164’s to support the shelf at the Hang Bar Position.
     These brackets will allow hangers to move along the Hang Bar uninterrupted.
     Be sure to use a 1166 to support the front lip of the shelf at any ‘open ends’.
