Selecting Adjustable ShelfTrack Hardware for use in Wardrobes & Linen Closets

Use the chart below to calculate the hardware you’ll need for each shelf created.

Select shelf lengths from the numbers across the top (dimensions in between should always be rounded up).

The column gives you the amount of hardware you’ll need for EACH shelf.

Click here to find all of the relevant components.


Product Name

2’

3’

4’

5’

6’

7’

8’

9’

10’

End Caps – 203

Use quantities shown for each shelf

Use 10 x 203 for 12” SuperSlide (4719)

Use 12 x 203 for 16” SuperSlide (5670)

Use 8 x 203 for 12” Linen (7315)

Use 10 x 203 for 16” Linen (7320)

Use 10 x 203 for 20" Linen (7325)

Hang Track - 2824, 2826, 2836

Install first to ensure all Wall Standards are level.
Available in 24", 40" & 80" lengths






1 x
2824





1 x
2826

1 x 2826
OR
2 x 2824

1 x 2824
&
1 x 2826

1 x
2836
OR
2 x 2826

1 x 2836
OR
2 x
2826



1 x 2824 &
1 x 2836



1 x 2824 &
1 x 2836



1 x 2826 &
1 x 2836



Wall Standard - 2800, 2801, 2804, 2808, 2812

Available in 12", 30", 48", 60" & 84" lengths.
Use at each end of installation and no more than 24" apart.

2



2



3

3

4

5

5

6



6

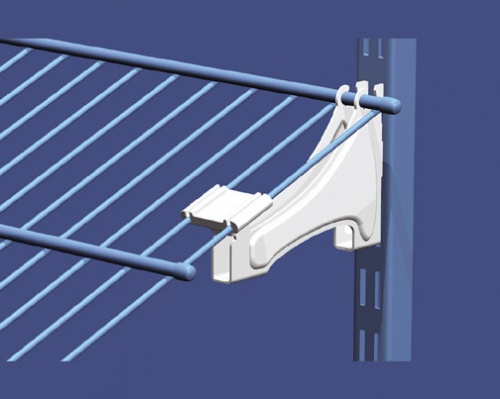

Shelf Support Bracket – 2853, 2854, 2855

Use to attach shelf to Wall Standard. Available in 12", 16" & 20" depths

2

2

3

3



4



5

5

6



6



Fixing Kit Solid walls - 2876

10 x Wall anchors & Screws. Use to fix Hang Tracks & Wall Standards to the wall. For use with Solid & Stud Walls.

1

1

2

2



2



3

3

3



4



Fixing Kit Stud Walls - 2877

5 x Toggle bolts & screws. Use to fix Hang Tracks & Wall standards to the wall. For use with stud walls where you are fixing to a void behind plasterboard.

2 2 4 4 4 6 6 6 8

SuperSlide Hang Bar –

2056, 2057, 2058, 2059, 2012

Allows hangers to slide uninterrupted. Available in 3’, 4’, 6’, 8’ & 10’ lengths

1

(3’)

1

(3’)

1

(4’)

1

(6’)

1

(6’)

1

(8’)

1

(8’)

1

(10’)

1

(10’)

Hang Bar Cap – 2081

Use at ‘open ends’ of hang bar to stop items slipping off the ends

2

2

2

2

2

2

2

2

2

Hang Bar Support - 5647

Use every 3' along length of hang bar and at each 'open end'.

2 2 3 3 3 4 4 5 5

Shoe Shelf Bracket - 2817
Use 1 at each end, and then no more than 3' apart, along the length of the shelf. Sold as a pair.



1





1





2



2



2



3



3



3

3

Corner Hang Bar – 5649

For use when bringing hanging sections around corners

Use with SuperSlide Hang Bars to create an uninterrupted sliding action around corners for ‘L-Shape’ & Walk In Closets.


Use Hang Bar Supports (5647) at each end of the Corner Hang Bar to support the join.
